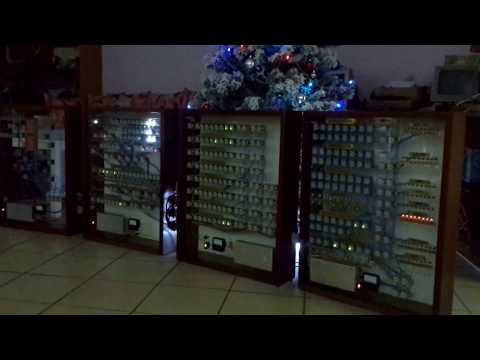

Fibonacci sequence
; A, B, or C contain successive elements of the sequence
ORG 0
MOVI B, 1 ; 00: 1000 0001 0000 0001 (8101h)
Label:
ADD C, B, A ; 01: 0100 1010 0001 1000 (4B18h)
MOV A, B ; 02: 0001 1000 0001 0000 (1810h)
MOV B, C ; 03: 0001 1001 0010 0000 (1920h)
JMP Label ; 04: 1000 0111 0000 0001 (8701h)
int a = 0;
int b = 1;
while (1=1)
{
c = a + b;
a = b;
b = c;
}
Euclid’s algorithm
; A, B - operands, A - result
ORG 0
MOVI A, op1 ; 00: 10000000 iiiiiiii
MOVI B, op2 ; 01: 10000001 iiiiiiii
Loop:
OR F, A, A ; 02: 01101000 00000000
JMP Z, End ; 03: 10010111 00001100
OR F, B, B ; 04: 01101000 00010001
JMP Z, End ; 05: 10010111 00001100
SUB F, A, B ; 06: 01011000 00000001
JMP C, L1 ; 07: 10110111 00001010
SUB A, A, B ; 08: 01011000 00001001
JMP Loop ; 09: 10000111 00000010
L1:
SUB B, B, A ; 0A: 01011001 00011000
JMP Loop ; 0B: 10000111 00000010
End:
ADD A, A, B ; 0C: 01001000 00001001
HALT ; 0D: 00010000 00000000
Second version, with operands loaded from the switches
; switches - operands, A - result
ORG 0
LOAD A, 0x80 ; 00: 00100000 10000000
LOAD B, 0x81 ; 01: 00100001 10000001
Loop:
OR F, A, A ; 02: 01101000 00000000
JMP Z, End ; 03: 10010111 00001011
OR F, B, B ; 04: 01101000 00010001
JMP Z, End ; 05: 10010111 00001011
SUB A, A, B ; 06: 01011000 00001001
JMP NC, Loop ; 07: 11000111 00000010
ADD A, A, B ; 08: 01001000 00001001
SUB B, B, A ; 09: 01011001 00011000
JMP Loop ; 0A: 10000111 00000010
End:
ADD A, A, B ; 0B: 01001000 00001001
HALT ; 0C: 00010000 00000000
Third version, does not validate inputs
; switches - operands, A - result
ORG 0
LOAD A, 0x80 ; 00: 00100000 10000000
LOAD B, 0x81 ; 01: 00100001 10000001
Loop:
SUB A, A, B ; 02: 01011000 00001001
JMP Z, End ; 03: 10010111 00001000
JMP NC, Loop ; 04: 11000111 00000010
ADD A, A, B ; 05: 01001000 00001001
SUB B, B, A ; 06: 01011001 00011000
JMP NZ, Loop ; 07: 11100111 00000010
End:
ADD A, A, B ; 08: 01001000 00001001
HALT ; 09: 00010000 00000000
int a = op1;
int b = op2;
while (a != 0 && b != 0)
{
if (a < b)
b -= a;
else
a -= b;
}
a += b;
Calculation of Pi

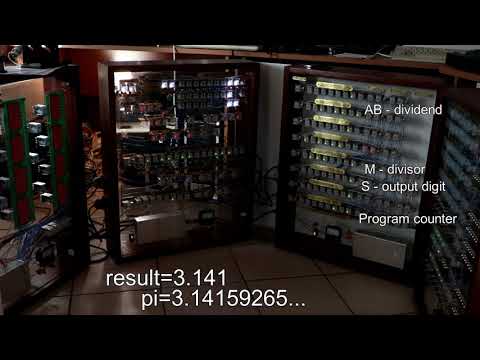

Using 22/7 fraction to calculate digits of Pi.
int a = 22;
int b = 7;
do
{
int d = a / b;
a = (a % b) * 10;
out(d);
}
while (1=1);
MOVI A, 22 ; 00:
MOVI B, 7 ; 01:
Main:
Div:
MOVI D, 0 ; 02:
MOVI C, 8 ; 03:
Loop:
ADD A, A, A ; 04:
ADC D, D, D ; 05:
SUB F, D, B ; 06:
JMP C, Next ; 07:
SUB D, D, B ; 08:
ADD A, A, 1 ; 09:
Next:
SUB C, C, 1 ; 0a:
JMP NZ, Loop ; 0b:
; Display next digit in S
MOV S, A ; 0c:
ADD D, D, D ; 0d:
ADD A, D, D ; 0e:
ADD A, A, A ; 0f:
ADD A, A, D ; 10:
JMP Main ; 11:
For 355/113 fraction:
; var a
MOVI A, 1 ; 00: 10000000 00000001
MOVI B, 99 ; 01: 10000001 01100011
; var b
MOVI M, 113 ; 02: 10000100 01110001
Main:
Div:
MOVI D, 0 ; 03: 10000011 00000000
MOVI C, 16 ; 04: 10000010 00010000
Loop:
ADD B, B, B ; 05: 01001001 00011001
ADC A, A, A ; 06: 01000000 00001000
ADC D, D, D ; 07: 01000011 00111011
SUB F, D, M ; 08: 01011000 00110100
JMP C, Next ; 09: 10110111 00001100
SUB D, D, M ; 0a: 01011011 00111100
ADD B, B, 1 ; 0b: 01001001 10011001
Next:
SUB C, C, 1 ; 0c: 01011010 10101001
JMP NZ, Loop ; 0d: 11100111 00000101
; Display next digit in S
MOV S, B ; 0e: 00011101 00010000
; rem * 2 still less than 256
ADD D, D, D ; 0f: 01001011 00111011
MOVI A, 0 ; 10: 10000000 00000000
; rem * 4
ADD B, D, D ; 11: 01001001 00111011
ADC A, A, A ; 12: 01000000 00001000
; rem * 8
ADD B, B, B ; 13: 01001001 00011001
ADC A, A, A ; 14: 01000000 00001000
; rem * 10
ADD B, B, D ; 15: 01001001 00011011
ADC A, A, 0 ; 16: 01000000 10001000
JMP Main ; 17: 10000111 00000011
For 355/113 fraction with simpler division algorithm:
; var a
MOVI A, 1 ; 00: 10000000 00000001
MOVI B, 99 ; 01: 10000001 01100011
; var b
MOVI M, 113 ; 02: 10000100 01110001
Main:
Div:
MOVI L, 0 ; 03: 10000110 00000000
Loop:
SUB D, B, M ; 04: 01011011 00011100
SBC C, A, 0 ; 05: 01010010 10001000
JMP C, Exit ; 06: 10110111 00001011
ADD L, L, 1 ; 07: 01001110 11101001
MOV B, D ; 08: 00011001 00110000
MOV A, C ; 09: 00011000 00100000
JMP Loop ; 0a: 10000111 00000100
Exit:
; Display next digit in S
MOV S, L ; 0b: 00011101 01100000
; rem * 2 still less than 256
ADD D, B, B ; 0c: 01001011 00011001
; rem * 4
ADD B, D, D ; 0d: 01001001 00111011
ADC A, A, A ; 0e: 01000000 00001000
; rem * 8
ADD B, B, B ; 0f: 01001001 00011001
ADC A, A, A ; 10: 01000000 00001000
; rem * 10
ADD B, B, D ; 11: 01001001 00011011
ADC A, A, 0 ; 12: 01000000 10001000
JMP Main ; 13: 10000111 00000011
For 355/113 fraction and teletype output:
; var a
MOVI A, 1 ; 00: 10000000 00000001
MOVI B, 99 ; 01: 10000001 01100011
; var b
MOVI M, 113 ; 02: 10000100 01110001
Main:
Div:
MOVI L, 0 ; 03: 10000110 00000000
Loop:
SUB D, B, M ; 04: 01011011 00011100
SBC C, A, 0 ; 05: 01010010 10001000
JMP C, Exit ; 06: 10110111 00001011
ADD L, L, 1 ; 07: 01001110 11101001
MOV B, D ; 08: 00011001 00110000
MOV A, C ; 09: 00011000 00100000
JMP Loop ; 0a: 10000111 00000100
Exit:
; Print the digit
STORE L, 0x90; 0b: 00110110 10010000
; rem * 2 still less than 256
ADD D, B, B ; 0c: 01001011 00011001
; rem * 4
ADD B, D, D ; 0d: 01001001 00111011
ADC A, A, A ; 0e: 01000000 00001000
; rem * 8
ADD B, B, B ; 0f: 01001001 00011001
ADC A, A, A ; 10: 01000000 00001000
; rem * 10
ADD B, B, D ; 11: 01001001 00011011
ADC A, A, 0 ; 12: 01000000 10001000
JMP Main ; 13: 10000111 00000011
Pseudocode for 355/113 fraction calculation:
@main()
{
ab = 355;
m = 113;
WHILE (1)
{
l = 0;
dc = ab;
WHILE (NC(ab -= m))
{
l += 1;
dc = ab;
}
OUT(l);
// TODO: need multiplication by constant
<<c; // *2
b = c;
a = 0;
<<ab; // *4;
<<ab; // *8
ab += c; // *10
}
}
Multiplication subroutines
TODO
8x8 -> 16
; C, D - operands, pair AB - result
MOVI C, op1
MOVI D, op2
MOVI A, 0
MOVI B, 0
MOVI M, 0
Loop:
SHR C, C
JMP NC, Next
ADD A, A, D
ADC B, B, M
Next:
ADD D, D, D
ADC M, M, M
OR C, C, C
JMP NZ,Loop
HALT
long mul8x8to16 (int op1, int op2)
{
int c = op1;
long d = op2;
long a = 0;
while (c != 0)
{
if (c & 1)
a += d;
c = >>c;
d = <<d;
}
return a;
}
long mul8x8to16 (int op1, int op2)
{
int c = op1;
long d = op2;
long a = 0;
while (c != 0)
{
if (0 >> c)
a += d;
d << 0;
}
return a;
}
8x8 -> 8

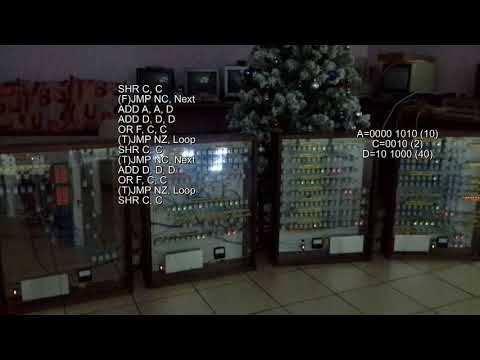

@mul8x8(a, b)
{
r = 0;
while (a != 0)
{
if (C(>>a))
r = r + b;
<<b;
}
return r;
}
; C, D - operands, A - result
MOVI C, op1 ; 00: 10000010 iiiiiiii
MOVI D, op2 ; 01: 10000011 iiiiiiii
MOVI A, 0 ; 02: 10000000 00000000
Loop:
SHR C, C ; 03: 01111010 -0101100
JMP NC, Next ; 04: 11000111 00000110
ADD A, A, D ; 05: 01001000 00001011
Next:
ADD D, D, D ; 06: 01001011 00111011
OR F, C, C ; 07: 01101000 00100010
JMP NZ,Loop ; 08: 11100111 00000011
HALT ; 09: 00010000 00000000
Division subroutines
8/8 -> 8
; D, M - operands, D - result, A - remainder
MOVI D, op1 ; 00: 10000011 iiiiiiii
MOVI M, op2 ; 01: 10000100 iiiiiiii
MOVI A, 0 ; 02: 10000000 00000000
MOVI C, 0 ; 03: 10000010 00000000
MOVI B, 8 ; 04: 10000001 00001000
Loop:
SHR C, C ; 05: 01111010 00101100
ADC D, D, D ; 06: 01000011 00111011
ADC A, A, A ; 07: 01000000 00001000
SUB F, A, M ; 08: 01011000 00000100
ADC C, C, 0 ; 09: 01000010 10101000
XOR C, C, 1 ; 0a: 01110010 10101001
JMP Z, Next ; 0b: 10010111 00001101
SUB A, A, M ; 0c: 01011000 00001100
Next:
SUB B, B, 1 ; 0d: 01011001 10011001
JMP NZ, Loop ; 0e: 11100111 00000101
SHR C, C ; 0f: 01111010 00101100
ADC D, D, D ; 10: 01000011 00111011
HALT ; 11: 00010000 00000000
long div8x8 (int op1, int op2)
{
int d = op1;
int m = op2;
int a = 0;
int b = 8;
int c = 0;
do
{
a << d << (0 >> c);
if (a > m)
{
a -= m;
c += 1;
}
}
while (--b);
d << (0 >> c);
return d;
}
long div8x8 (int op1, int op2)
{
int d = op1;
int m = op2;
int a = 0;
int b = 8;
do
{
a << d << 0;
if (a > m)
{
a -= m;
d += 1;
}
}
while (--b);
return d;
}
; D, M - operands, D - result, A - remainder, B - temp
MOVI D, op1 ; 00: 10000011 iiiiiiii
MOVI M, op2 ; 01: 10000100 iiiiiiii
MOVI A, 0 ; 02: 10000000 00000000
MOVI B, 8 ; 04: 10000001 00001000
Loop:
ADD D, D, D ; 05:
ADC A, A, A ; 06: 01000000 00001000
SUB F, A, M ; 07: 01011000 00000100
JMP C, Next ; 08:
SUB A, A, M ; 09: 01011000 00001100
ADD D, D, 1 ; 0a:
Next:
SUB B, B, 1 ; 0b: 01011001 10011001
JMP NZ, Loop ; 0c:
HALT ; 0d: 00010000 00000000
Demos
Sine wave
..x.....
.x.x....
x...x...
.....x.x
......x.
MOVI A, 0b00100000 ; 00: 10000000 00100000
MOVI B, 0b01010000 ; 01: 10000001 01010000
MOVI C, 0b10001000 ; 02: 10000010 10001000
MOVI D, 0b00000101 ; 03: 10000011 00000101
MOVI M, 0b00000010 ; 04: 10000100 00000010
Loop:
ROR A, A ; 05: 01111000 00001010
ROR B, B ; 06: 01111001 00011010
ROR C, C ; 07: 01111010 00101010
ROR D, D ; 08: 01111011 00111010
ROR M, M ; 09: 01111100 01001010
JMP Loop ; 0a: 10000111 00000101
Fire
...x.
..x..
..xx.
.x.xx
.xx.x
MOVI M, 0b01101 ; 00: 10000100 00001101
MOVI D, 0b01011 ; 01: 10000011 00001011
MOVI C, 0b00110 ; 02: 10000010 00000110
MOVI B, 0b00100 ; 03: 10000001 00000100
MOVI A, 0b00010 ; 04: 10000000 00000010
Loop:
XOR M, M, 6 ; 05: 01110100 11001110
XOR D, D, 6 ; 06: 01110011 10111110
XOR B, B, 6 ; 07: 01110001 10011110
XOR A, A, 6 ; 08: 01110000 10001110
JMP Loop ; 09: 10000111 00000101
3D walk
A x......x
B .x....x.
C ..x..x..
D ..x..x..
M xxx..xxx
MOVI M, 0b11100111 ; 00 10000100 11100111
MOVI D, 0b00100100 ; 01 10000011 00100100
MOVI C, 0b00100100 ; 02 10000010 00100100
MOVI B, 0b01000010 ; 03 10000001 01000010
MOVI S, 0b01000010 ; 04 10000101 01000010
MOVI A, 0b10000001 ; 05 10000000 10000001
MOVI L, 0b10000001 ; 06 10000110 10000001
Loop:
XOR C, C, D ; 07 01110010 00101100
XOR C, C, D ; 08 01110010 00101100
XOR B, B, S ; 09 01110001 00011101
XOR M, M, S ; 0a 01110100 01001101
XOR B, B, S ; 0b 01110001 00011101
XOR M, M, S ; 0c 01110100 01001101
XOR A, A, L ; 0d 01110000 00001110
XOR M, M, L ; 0e 01110100 01001110
XOR A, A, L ; 0f 01110000 00001110
XOR M, M, L ; 10 01110100 01001110
JMP Loop ; 11 10000111 00000111
Scrolling text
HELLO, HABR!
x.x.xxx.x...x...xxx.....x.x..x..xx..xx..x.
x.x.x...x...x...x.x.....x.x.x.x.x.x.x.x.x.
xxx.xx..x...x...x.x.xx..xxx.x.x.xx..xx..x.
x.x.x...x...x...x.x..x..x.x.xxx.x.x.x.x...
x.x.xxx.xxx.xxx.xxx.x...x.x.x.x.xx..x.x.x.
MOVI L, Data ; 00: 10000110 00001110
Loop:
LOAD S, L ; 01: 00101101 00000110
ADD L, L, 1 ; 02: 01001110 11101001
SHR S, S ; 03: 01111101 01011100
ADC A, A, A ; 04: 01000000 00001000
SHR S, S ; 05: 01111101 01011100
ADC B, B, B ; 06: 01000001 00011001
SHR S, S ; 07: 01111101 01011100
ADC C, C, C ; 08: 01000010 00101010
SHR S, S ; 09: 01111101 01011100
ADC D, D, D ; 0a: 01000011 00111011
SHR S, S ; 0b: 01111101 01011100
ADC M, M, M ; 0c: 01000100 01001100
JMP Loop ; 0d: 10000111 00000001
Data:
00011111
00000100
00011111
00000000
00011111
00010101
00010001
00000000
00011111
00010000
00010000
00000000
00011111
00010000
00010000
00000000
00011111
00010001
00011111
00000000
00010100
00001100
00000000
00000000
00011111
00000100
00011111
00000000
00011110
00001001
00011110
00000000
00011111
00010101
00001010
00000000
00011111
00000101
00011010
00000000
00010111
00000000
